As systems continue to evolve, connectors are expected to handle more power, support higher pin counts, and perform reliably in challenging environments, all within increasingly compact designs.
The TW3002 from Tarng Yu is built to meet these demands. Designed as a premium custom connector, it provides a strong foundation for high-power system integration.
Used across a range of applications, including e-bikes, e-scooters, power shelf systems, and battery backup units (BBU), the TW3002 has proven its reliability in demanding conditions.

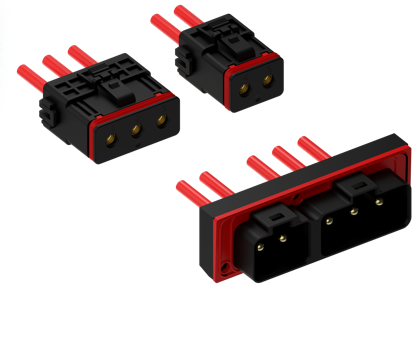

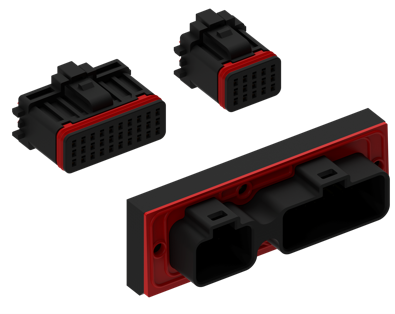

What is the Tarng Yu TW3002 Connector?
As a custom connector, the TW3002 offers flexibility in both configuration and design. It supports high pin counts within a compact footprint while maintaining the ability to handle higher current loads, making it well-suited for complex systems.
Its robust structure and sealing design allow it to be confidently integrated into applications where exposure to dust, moisture, or outdoor environments is a concern.
Key Specifications of the Tarng Yu TW3002
- Pin Count: 30+ pins for high-density connectivity
- Current Rating: Supports up to 50–60A for demanding power delivery
- Waterproof Rating: IP67 sealing for protection against dust and water
- Mounting Type: Panel mount design for secure and stable integration
These specifications make the TW3002 a strong option for applications where both electrical performance and environmental protection are critical.
View the TW3002 Profile
Key Capabilities of the Tarng Yu TW3002
High Power Handling
The TW3002 is designed to support high current requirements, with a capacity of up to 50–60A. This makes it suitable for applications where stable and efficient power delivery is essential.
High Pin Density in a Compact Design
With 30+ pins integrated into a single connector, the TW3002 enables high-density connectivity without increasing system complexity. This helps reduce the need for multiple connectors and supports cleaner, more efficient layouts.
Reliable IP67 Protection
Engineered with IP67-rated sealing, the TW3002 provides dependable protection against dust and water ingress. It is well-suited for applications exposed to outdoor or harsh operating environments.
Flexible Customisation Options
As a custom connector platform, the TW3002 allows flexibility in housing and configuration. This enables it to be adapted to different system requirements, making integration more efficient for specific applications.
Applications of the Tarng Yu TW3002 Connector
The Tarng Yu TW3002 is used across a wide range of industries where high power, high pin count, and environmental protection are required. Its design makes it suitable for both mobile and stationary systems operating in demanding conditions. Typical applications include, but are not limited to:
E-bikes and e-scooters
Supporting power and signal connections in compact, high-performance mobility systems.
Power shelf systems
Enabling reliable power distribution in modular power architectures.
Battery Backup Units (BBU)
Providing stable connections for backup power systems.
Industrial equipment
Suitable for machinery and systems that require durable, high-density connectivity.
Energy and power management systems
Used in applications where efficient power handling and secure connections are essential.
The TW3002 is ideal for applications where space, power, and environmental conditions all need to be considered together.
Customisation & Integration Support with Active Components
The Tarng Yu TW3002 is designed not only as a high-performance connector, but also as a flexible platform that can be adapted to specific application requirements. With customisation options available in areas, the TW3002 can be tailored to suit different system layouts, mechanical constraints, and performance needs. This makes it a practical choice for projects that require more than a standard off-the-shelf solution.
Active Components offers a full range of Tarng Yu connectors to customers across New Zealand and Australia, bringing added flexibility to your projects. With over 40 years of experience, we work closely with both customers and suppliers to develop connector solutions that align with real project requirements. From selecting the right configuration to supporting customised designs, our approach focuses on delivering solutions that integrate smoothly into your system and support long-term performance.
If you are working on a project that requires a tailored connector solution, talk with us about your application. Our team is here to help you find the right fit.
